产品描述:

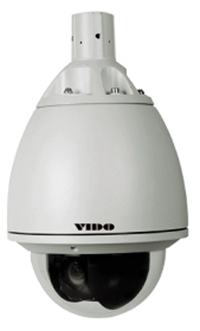

AU-G61-HD30是网络高清高速球型摄像机, 采用H.264视频压缩技术和DSP处理器,实现了高性能的压缩比和高清晰的图像质量.内置30X 1/3″CCD 的高清模组, 包括了360°旋转高速云台,风扇,加热器,彻底解决了在户外长时间运行的防水防尘问题.支待IE浏览器和手机监看. 视频压缩采用标准的H.264格式,可以标准的媒体播放器上回放。
Description:
AU-G61-HD30 is Mega pixel network speed dome cameras, use H.264 video compression algorithm and DSP processor, high quality of compression and image. Built-in 30X 1/4″ COMS HD camera module, with 360 endless high speed, fan and heater, can be running with long time for outdoor, dustproof, waterproof. Support the browse by IE and mobile phone. Video Compression use standard H.264 Main Profile, Playback with standard media player.
关键特点:
● 130万像素, 1280(H)×720(V)/25fps
● 30X光学变焦, 12X数字变焦
● 1:1逐行扫描
● 电子快门, 日夜自动转换
● 标准的H.264/ MJPEG视频压缩格式
● 软件支持 IE. 客户端和平台管理软件三种方式
● 报警是触发或移动侦测方式
● 密码保护及多用户管理.
● 带有1个RJ45网口, 自适应10Base-T/100Base-TX
● 水平360°旋转, 速度为0.5°-300°/秒
● 垂直角度为 0°~100°, 速度为0.5°~150°/秒
● 256个预置位
● 防护等级IP66
● 内置加热器和风扇
Features:
● 1280(H)×720(V)/25fps, 1.3 Mega pixel for HD30
● 30X Optical zoom & 12X Digital for HD30
● 1:1 progressive scan
● Electronic shutter, day& night
● Standard H.264/ MJEPG video compressions
● Software support IE, Client and CMS
● Alarm is Contact triggers or Motion detection
● Password protection, multi-users access controls
● Support RJ45x1, 10Base-T/100Base-TX Auto Detect
● Pan range: 360°endless, Pan speed: 0.5°~300°/sec
● Tilt range: 0°~100°, Tilt speed: 0.5°~150°/sec
● 256 preset position
● Protection Class: IP66
● Built-in Heater, and Fan

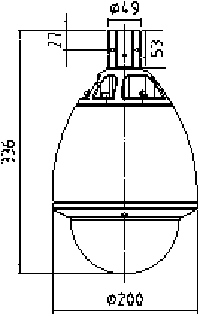

简图 Dimension:(单位Units:mm)
技术指标 Specification
型号Model |
AU-G61-HD30 | |
图像感应器
Image sensor |
1/3″ CCD | |
扫描方式
Scanning Model |
逐行扫描
1:1 progressive scan | |
倍率Zoom |
30X Optical zoom 光学变焦 | |
焦距Focal Length |
4.4mm~132mm | |
有效像素
Effective pixels |
1280(H)×720(V)/25fps, about 1.3 Mega pixels大约130万像素 | |
最低照度
Min. illumination |
1.0Lux (IR-Cut ON)
0.02Lux (IR-Cut OFF) | |
日夜模式Day& Night |
Auto/Manual 自动/手动 | |
水平角度Pan range |
360°endless 360°连续旋转 | |
水平速度Pan speed |
0.5°~300°/sec 0.5°~300°/秒 | |
垂直角度Tilt range |
0°~100° | |
垂直速度Tilt speed |
0.5°~150°/sec 0.5°~150°/秒 | |
预置位Preset Position |
0~255 | |
轨迹Tracking |
6 | |
视频压缩
Video Compression |
H.264 /MJPEG Main Profile
主码流支持H.264和MJPEG | |
视频压缩码率
Video Compression rate |
32Kbps~16Mbps连续可调,支持CBR/VBR
32Kbps~16Mbps adjustable, support CBR/VBR | |
最大图像分辨率
Max resolution |
1280(H)×720(V) | |
压缩分辨率
Compressed Resolution |
1280(H)×960(V)/16.7fps 、1280(H)×720(V)/25fps、640×320 /25fps、320×240 /25fps、160×112 /25fps | |
音频压缩
Audio Compression |
G.711,支持32K立体声
G.711, support 32K stereo | |
以太网接口
Ethernet Port |
RJ45x1, 10Base-T/100Base-TX Auto Detect
1 只RJ45网口, 10Base-T/100Base-TX自适应 | |
存储
Storage |
Support SD (selectable)
支持SD2.0标准Micro SDHC卡,最大容量33G(可选) | |
USB |
1 (selectable) 1个(可选) | |
音频
Audio |
1 × Audio input 1×audio output (selectable)
音频输入1路 音频输出 1路 (可选) | |
软件Software |
IE、Client, CMS, Mobile IE 浏览器, 客户端, 平台管理软件, 手机监看 | |
报警数据传输
Alarm transmission |
IE, CMS
上传到浏览器、管理软件 | |
数据存储
Data Storage |
Video, Image file
视频, 图片文件 | |
Storage mechanism
存储机制 |
手动、自动(循环、定时、报警开关量、移动侦测)
Manual, Auto (Cycle, Timing. Alarm switch quantity, Motion detection) | |
协议
Supporting Protocol |
TCP/IP、UDP、RTP、RTSP、RTCP、HTTP、DNS、DDNS、DHCP、FTP、NTP、PPPOE、SMTP、UPNP | |
ONVIF |
SUPPORT 支持 | |
客户端浏览
IE |
PC电脑 |
支持IE6.0及以上(设备内嵌Web Server),支持16用户并发访问(MAX)
Support IE6.0 or more(with web server), support 16 users login (MAX) |
智能手机
mobile |
支持Windows Mobile、Symbian、iPhone | |
安全Security |
Password protection, multi-users access controls
密码保护, 多用户管理. | |
安全性Safety |
Built-in surge and lightning protection
内置浪涌和雷击保护. | |
防护等级
Protection Class |
IP66 | |
防护功能
Protection types |
Built-in Heater and fan 内置加热器 和风扇 | |
输入电压
Power inputs |
AC24V | |
电源功率(加热器打开)
Power Consumption |
45W (Heater ON) | |
工作温度
Operation Temperature |
-35℃~+55℃ | |
尺寸
Dimension |
Φ200×336mm (H) (Outdoor Dome) | |
重量Weight |
5Kg |
